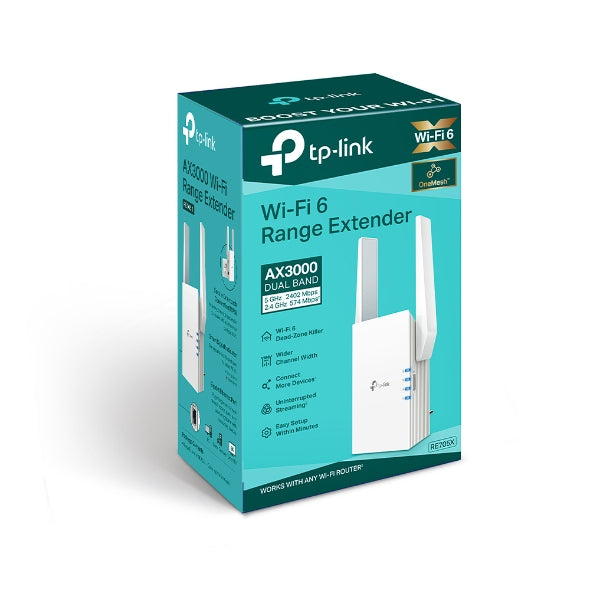

TP Link AX3000 Mesh WiFi 6 Range Extender - White | RE705X TP Link AX3000 Mesh WiFi 6 Range Extender - White RE705X

Life in the fast lane with advanced WiFi6

WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.

• WiFi6 1024-QAM - 25 % faster
• WiFi 5 256-QAM

Double Channel Speed with HE160 - Higher Efficiency, Lower Latency

Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.

4 high-performance amplifiers, we got you covered

Enjoy 4K streaming and gaming in whatever room you’re in thanks to RE705X’s 4 high-performance amplifiers. Whether you’re sharing a pad with friends or living in your forever home, RE705X sends out strong signals to those hard-to-cover areas.

OFDMA - More efficient data

Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.

Beamforming - Strong, targeted WiFi

Find the direction of your phone or laptop, and accelerate your signal strength.

Adaptive Path Selection

Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

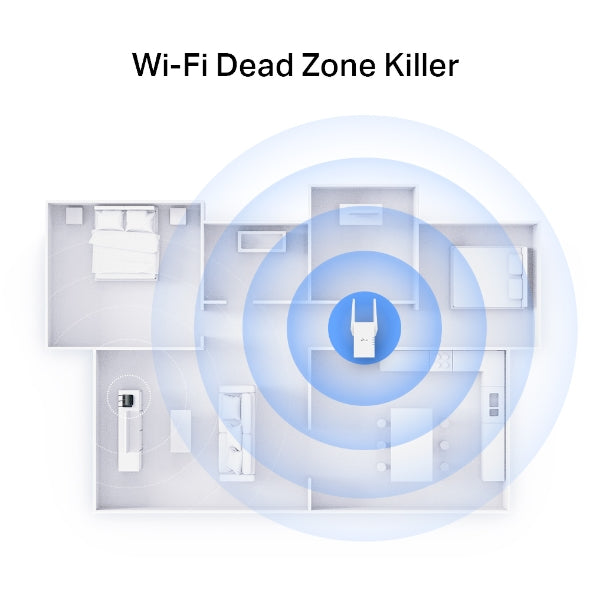

• WiFi Dead Zone Killer - Eliminate weak signal areas with WiFi coverage for the whole house
• Smart Roaming - Uninterrupted streaming when moving around your home
• One WiFi Name - No more switching WiFi network names

Wide.Wider.Widest

Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.

Built-In - Access Point Mode

RE705X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.

Control at Your Fingertips

Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.

Key Features:

• Dual Band WiFi 6 - Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the latest technology†
• EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage
• AP Mode - Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability
• Gigabit Ethernet Port - Provides high-speed wired access, ideal for smart TVs, PCs, and game consoles
• App Control - Easy Setup and management with your network using the TP-Link Tether app
• Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage

Reception Sensitivity

• 5GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-78dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -62dBm, 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS11: -59dBm
• 2.4GHz: 11g 6Mbps:-96dBm, 11g 54Mbps:-78dBm, 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm

Web Server

• Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443, Protocol: TCP

DHCP Server

• IP address assignment (DHCP)
• Port: 67, Protocol: UDP

App management

• Manage and configure device through app
• Port: 20001, Protocol: TCP
• Port: 20002, Protocol: UDP

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Box Contains:

• Wi-Fi Range Extender RE705X
• Quick Installation Guide
