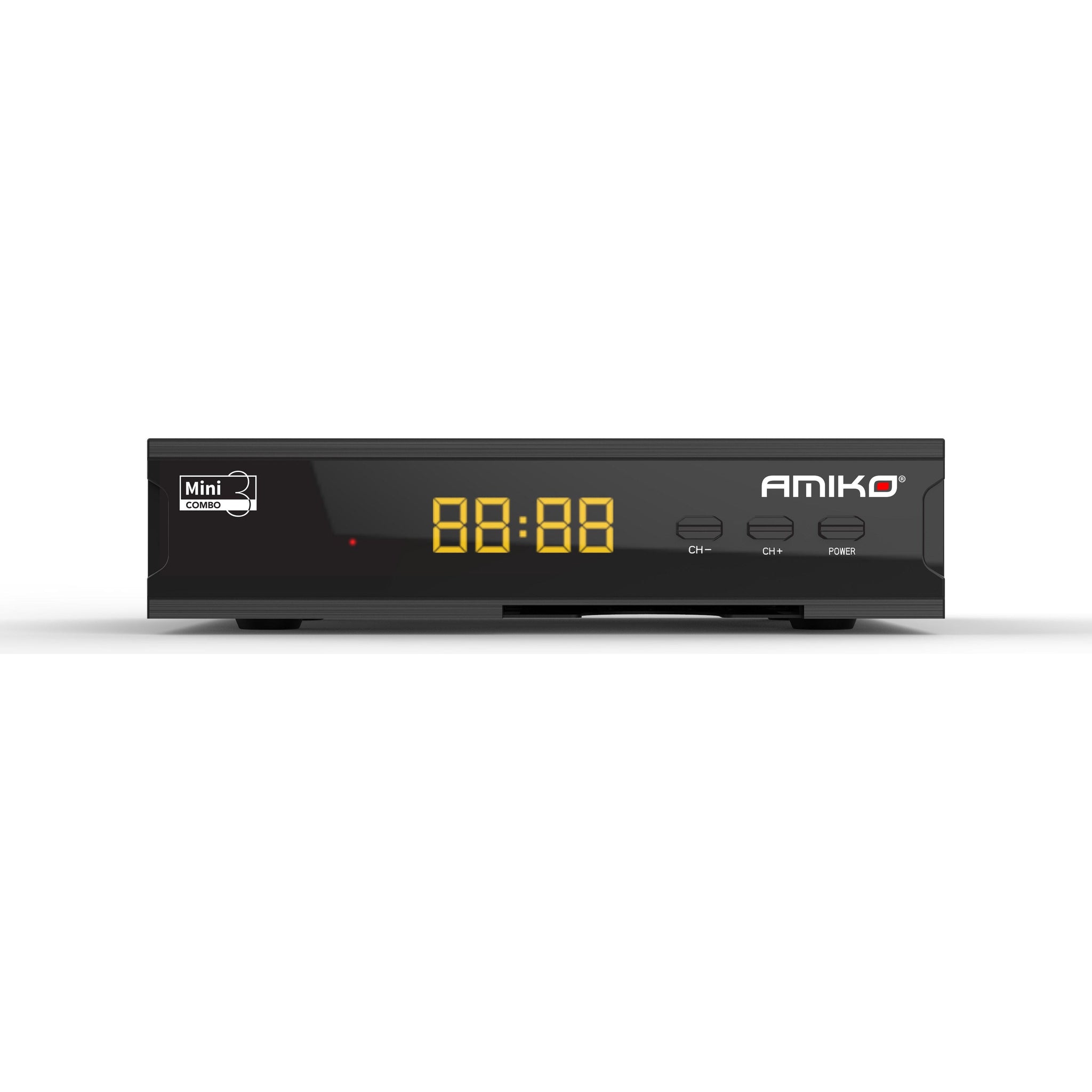

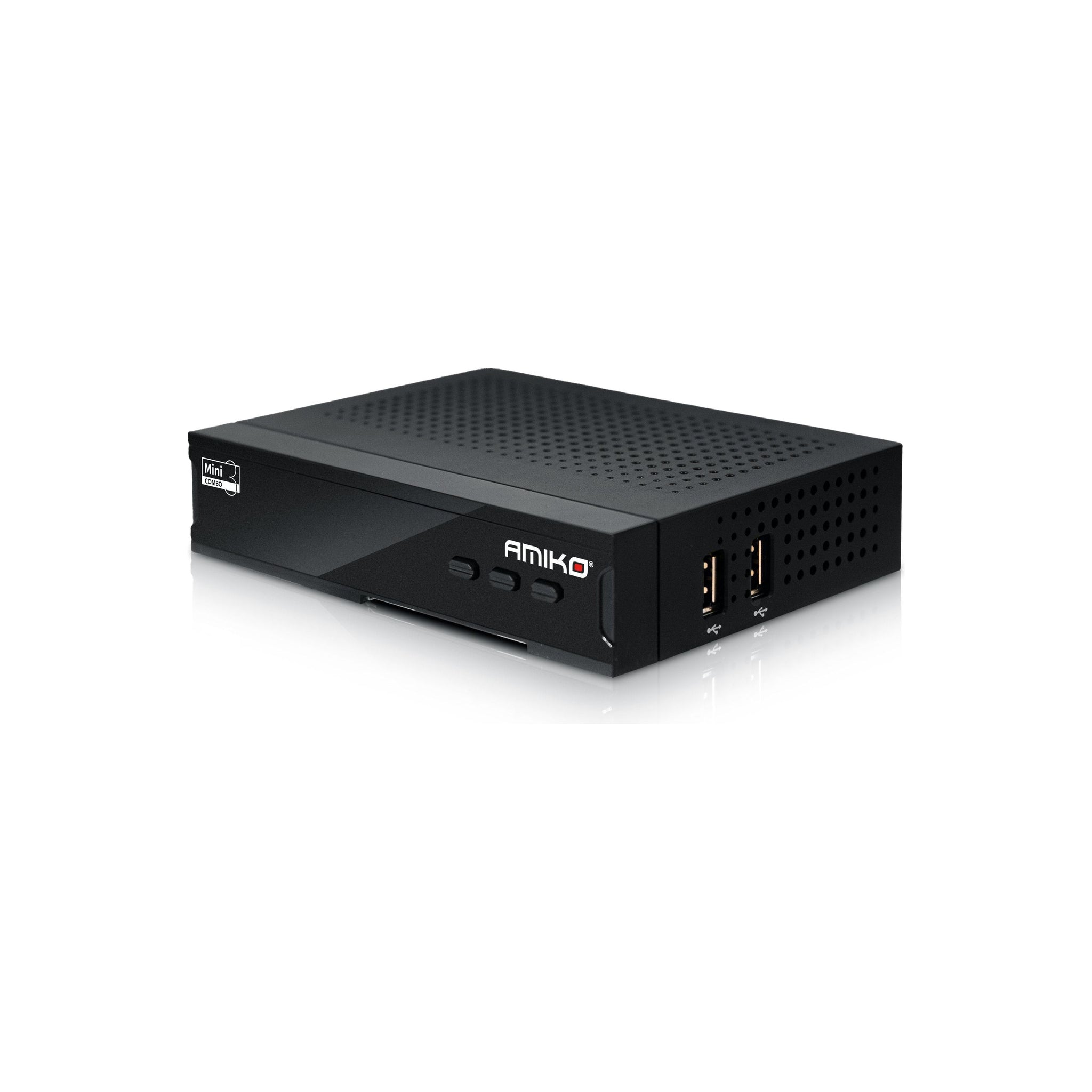

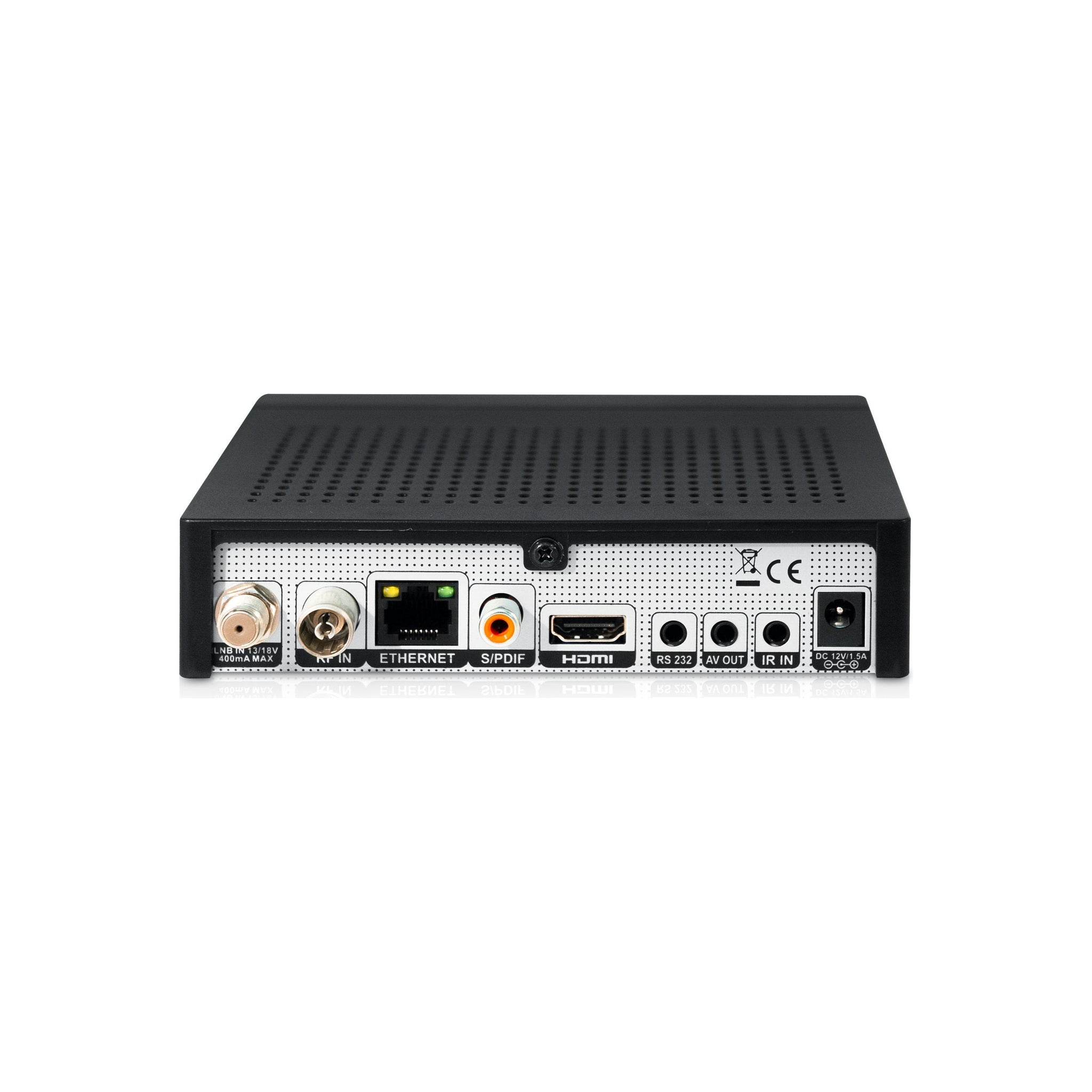

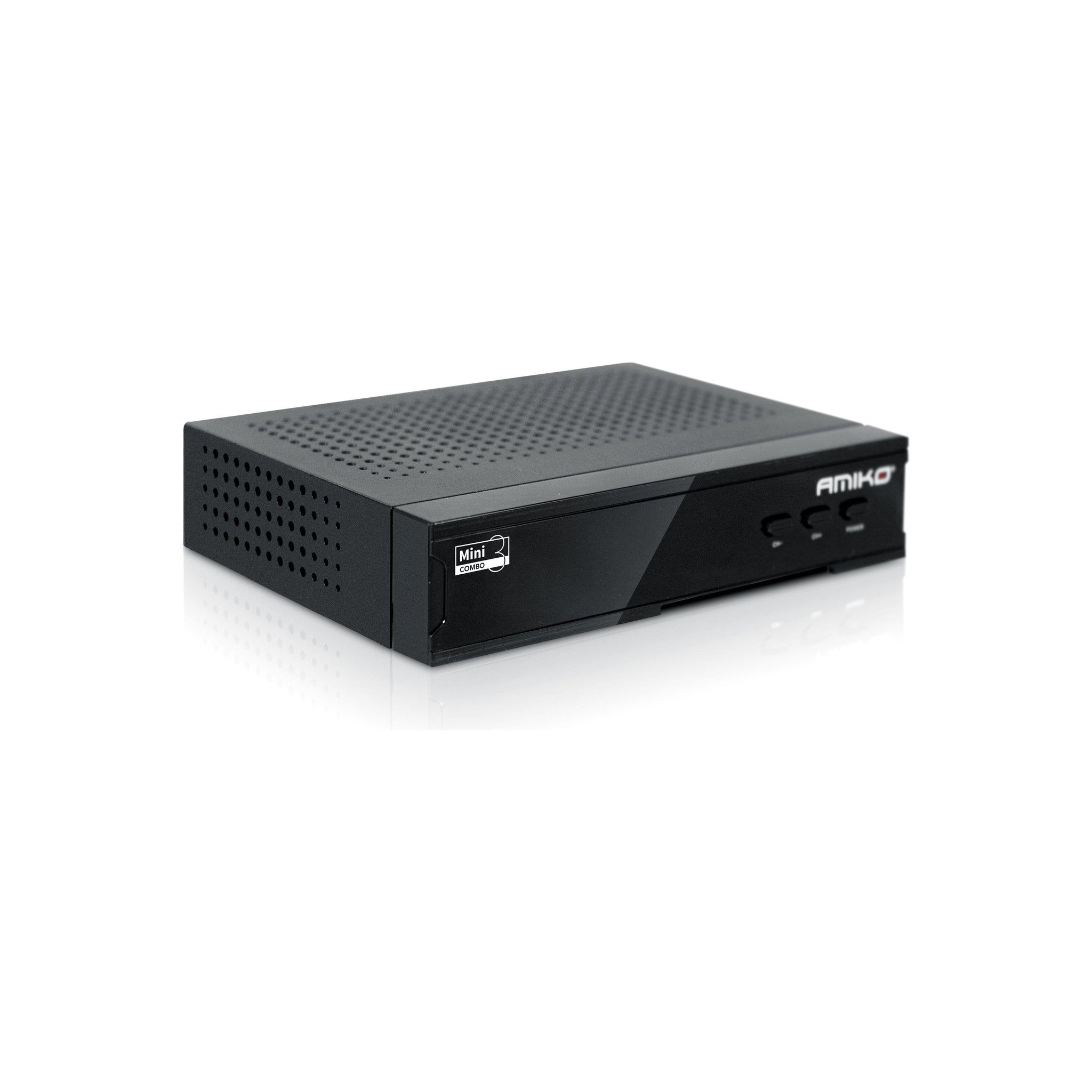

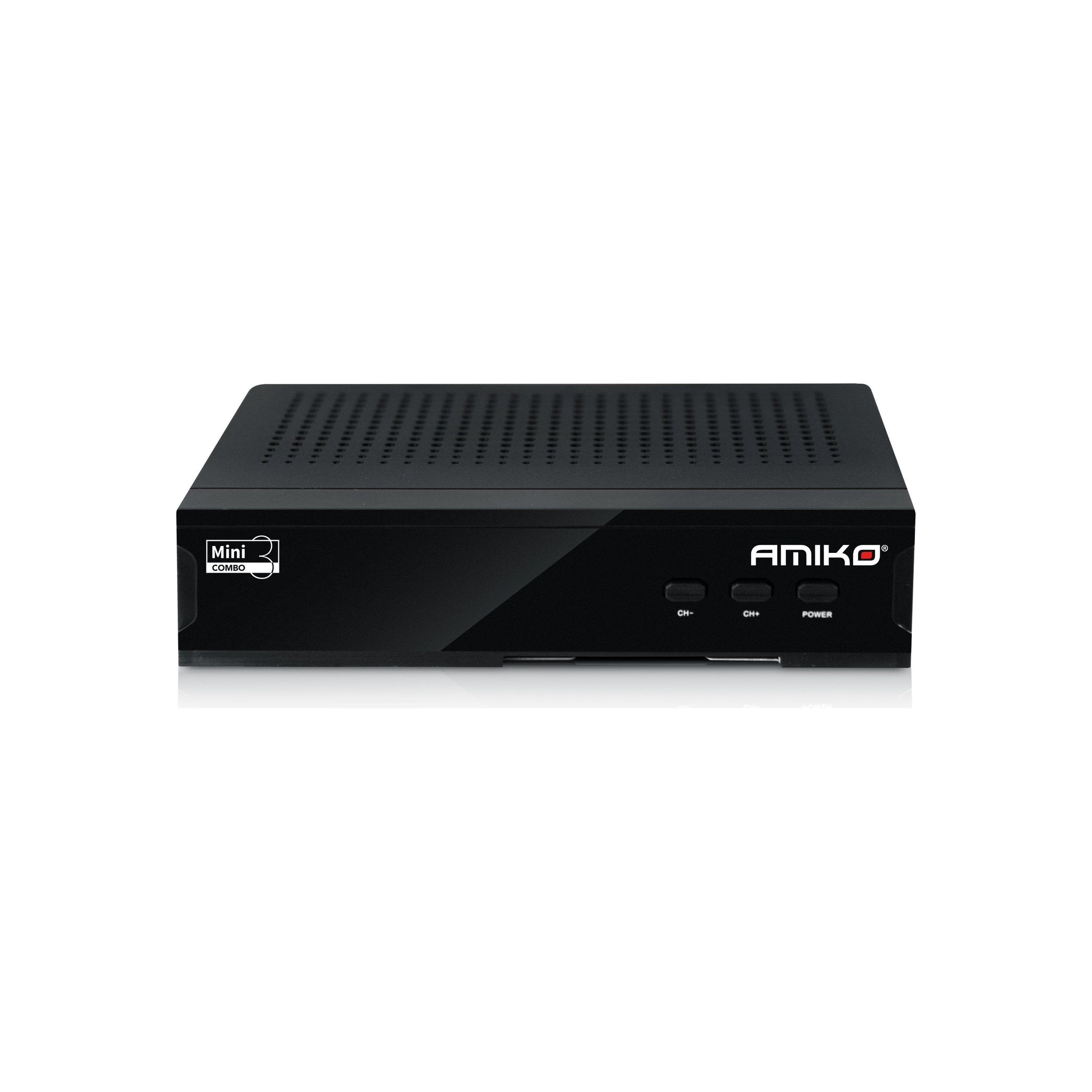

Amiko Mini Combo 3 TV Receiver - Black | AMIKOMC3

Key Features:

• High Speed USB 2.0 Connection Support
• 6000 channels (TV and Radio)
• AV Jack support
• External infra port
• TimeShifting Support
• Software Upgrade via USB
• MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3
• Playback Support
• Software Upgrade via USB
• Dolby Digital Bit-Stream out via HD OUT
• Low Power Consumption in Stand

Additional Features:

• Timeshift support
• Channel Recording & Timeshifting Simulteniously (optional)
• Channel switching time less than 1 second
• True-color, User Friendly On-Screen Display (OSD)
• Full Picture In Graphic (PIG) function
• Electronic Program Guide (EPG) for on screen channel information
• Subtitle supported
• Teletext supported by VBI insertion and software emulation
• Parental lock facility by channel and program event
• Program and Channel information transfer from receiver to receiver
• Multi-Language support

Tuner & Demodulation

Tuner Type: DVB-S / DVB-S2:

• Input Connector:F-type, Connector, Female
• Signal Level:-65 to -25 dBm
• LNB Power & Polarization:Vertical: +13V/+14V, Horizontal: +18V/+19V
• Current:Max. 400mA
• Overload Protection
• 22KHz Tone Frequency:22±1KHz
• DiSEqC Control:Version 1.0, 1.1, 1.2, USALS
• Demodulation:QPSK, 8PSK
• Input Symbol Rate:2-45 Mbps
• FEC:1/2, 2/3, 3/4, 5/6, 7/8 and Auto

Tuner Type: DVB-T2 / DVB-C:

• Frequency Range:48~862MHz
• RF Input Level:-80dBm to -20dBm
• Antenna power output:DC 5V at max 75mA, Overload protection
• Demodulation:COFDM 1K, 2K, 4K, 8K normal and extended, 16K normal and extended, 32K normal and extended
• Input Symbol Rate:1.0 ~ 7.0Ms/s
• Constellations:QPSK, 16QAM, 64QAM, 256QAM / Both rotated and non-rotated
• Guard Intervals:1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rate:1/2, 3/5, 2/3, 3/4, 5/6
