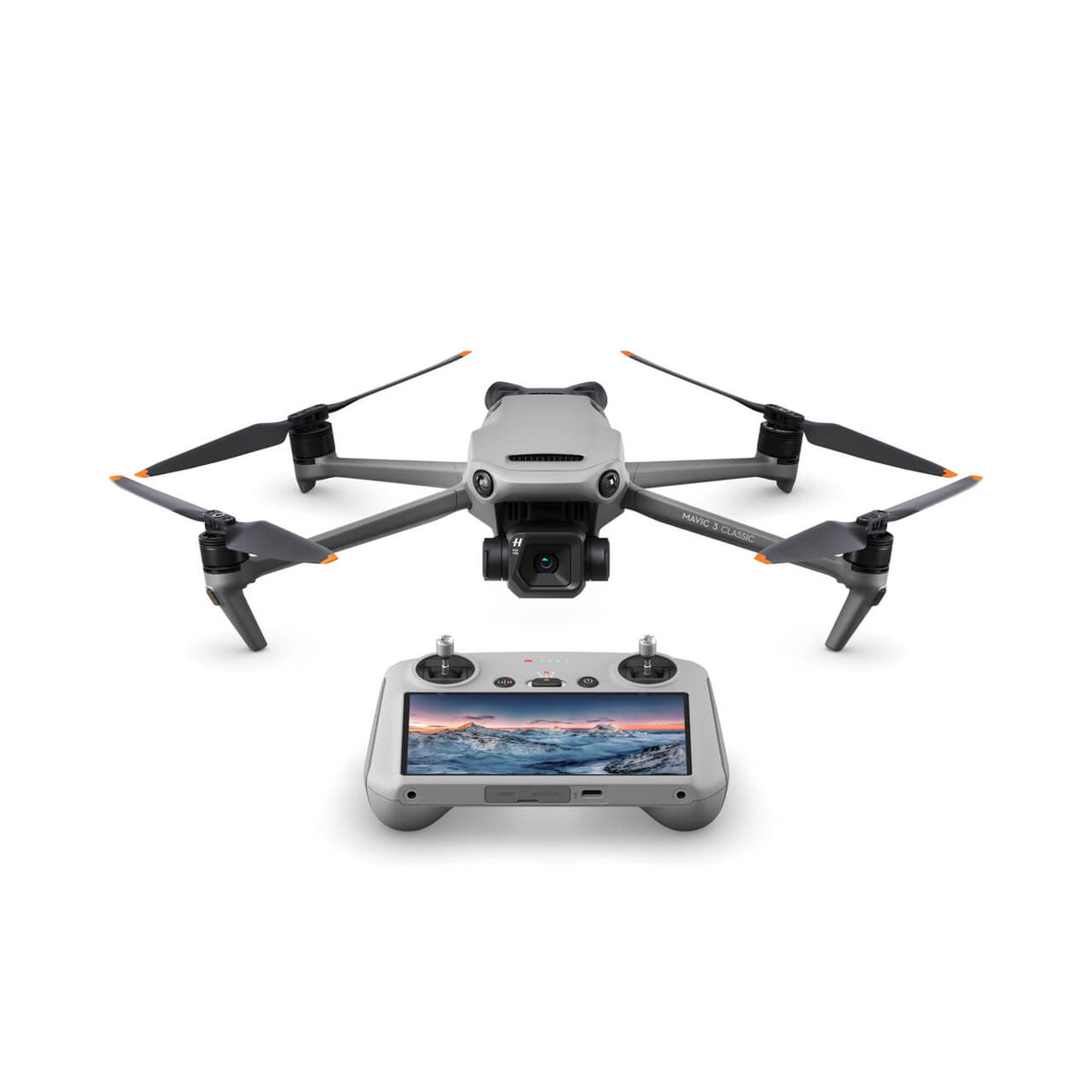

Aircraft
Takeoff weight - 895 g
Dimensions
- Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
- Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
-
Max ascent speed - 8 m/s
-
Max descent speed - 6 m/s
-
Max horizontal speed (at sea level, no wind) - 21 m/s (No faster than 19 m/s in EU regions.)
-
Max takeoff altitude - 6000 m
-
Max flight time - 46 minutes (Measured in a controlled test environment. Specific test conditions are as follows: flying at a constant speed of 32.4 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.)
-
Max Hovering Time - 40 minutes Measured in a controlled test environment. Specific test conditions are as follows: hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Results may vary depending on environment, actual use, and firmware version.
-
Max flight distance - 30 km
-
Max Wind speed resistance - 12 m/s
-
Max tilt angle - 35°
-
Operating temperature -10° to 40° C (14° to 104° F)
-
Global Navigation satellite system GPS + Galileo + BeiDou
-
Internal storage - 8 GB (approx. 7.9GB available space)
Hovering accuracy range
Vertical:
- ±0.1 m (with vision positioning)
- ±0.5 m (with GNSS positioning)
Horizontal:
- ±0.3 m (with vision positioning)
- ±0.5 m (with high-precision positioning system)
Hasselblad Camera
Image sensor - 4/3 CMOS, Effective Pixels: 20 MP
Video format MP4/MOV - (MPEG-4 AVC/H.264, HEVC/H.265)
Max video bitrate - H.264/H.265: 200 Mbps
Supported file system - exFAT
Color mode - Normal/HLG/D-Log
Digital zoom - 3x
Shutter speed - Electronic Shutter: 8-1/8000 s
Max image size - 5280×3956
Photo format - JPEG/DNG (RAW)
Lens
- FOV: 84°
- Format equivalent: 24 mm
- Aperture: f/2.8-f/11
- Focus: 1 m to ∞
ISO range
- Video: Normal
- Slow-motion: 100-6400 (normal color), 400-1600 (D-Log), 100-1600 (HLG)
- Night Mode: 800-12800 (normal color)
- Photo: 100-6400
Still photography modes
- Single shot: 20 MP
- Burst shooting: 20 MP, 3/5/7 frames
- Automatic exposure bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step
- Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
Video Resolution
- H.264/H.265
- 5.1K: 5120×2700@24/25/30/48/50 fps
- DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps
- 4K: 3840×2160@24/25/30/48/50/60/120* fps
- FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps
Gimbal
Stabilization - 3-axis mechanical gimbal (tilt, roll, pan)
Max control speed (tilt) - 100°/s
Angular vibration range - ±0.007°
Mechanical range
- Tilt: -135° to 100°
- Roll: -45° to 45°
- Pan: -27° to 27°
Controllable range
- Tilt: -90° to 35°
- Pan: -5° to 5°
Sensing
Sensing type - Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward
- Measurement range: 0.5-20 m
- Detection range: 0.5-200 m
- Effective sensing speed: Flight speed ≤ 15 m/s
- FOV: Horizontal 90°, Vertical 103°
Backward
- Measurement range: 0.5-16 m
- Effective sensing speed: Flight speed ≤ 12 m/s
- FOV: Horizontal 90°, Vertical 103°
Lateral
- Measurement range: 0.5-25 m
- Effective sensing speed: Flight speed ≤ 15 m/s
- FOV: Horizontal 90°, Vertical 85°
Upward
- Measurement Range: 0.2-10 m
- Effective Sensing Speed: Flight speed ≤ 6 m/s
- FOV: Front and Back 100°, Left and Right 90°
Downward
- Measurement range: 0.3-18 m
- Effective sensing speed: Flight speed ≤ 6 m/s
- FOV: Front and back 130°, Left and right 160°
Operating environment
- Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15)
- Downward: surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)
Video transmission
Video transmission system - O3+
Antennas - 4 antennas, 2T4R
Live view quality
- Remote controller: 1080p/30fps, 1080p/60fps
Operating frequency
- 2.400-2.4835 GHz
- 5.725-5.850 GHz
Transmission power (EIRP)
- 2.400-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
- 5.725-5.850 GHz: < 33 dBm (FCC), < 30 dBm (SRRC), < 14 dBm (CE)
Max transmission distance (Free of interference)
- FCC: 15 km
- CE: 8 km
- SRRC: 8 km
- MIC: 8 km
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to RTH reminders in the DJI Fly app.
Max Transmission Distance (With interference)
- Strong Interference: urban landscape, approx. 1.5-3 km
- Medium Interference: suburban landscape, approx. 3-9 km
- Low Interference: suburb/seaside, approx. 9-15 km
Max download speed
- O3+: 5.5 MB/s (with DJI RC)
Wi-Fi 6: 80 MB/s
Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to the internal storage. Download speeds may vary depending on the actual conditions.
Lowest latency
Charger
Input - 100-240 V (AC), 47-63 Hz, 2 A
Rated power - 65 W
Output
USB-C:
- 5 V, 5 A
- 9 V, 5 A
- 12 V, 5 A
- 15 V, 4.3 A
- 20 V, 3.25 A
- 5-20 V, 3.25 A
USB-A:
Battery charging hub
Input - USB-C: 5-20 V, max 5 A
Output - Battery Port: 12-17.6 V, max. 5 A
Charging type - Three batteries charged in sequence
Compatibility - DJI Mavic 3 Intelligent Flight Battery
Rated power
- DJI Mavic 3 Battery Charging Hub: 65 W
- DJI Mavic 3 Battery Charging Hub (100W): 100 W
Car charger
Input - Car power input: 12.7-16 V, 6.5 A, rated voltage 14 V (DC)
Rated power - 65 W
Charging temperature - 5° to 40° C (41° to 104° F)
Output
USB-C:
- 5 V, 5 A
- 9 V, 5 A
- 12 V, 5 A
- 15 V, 4.3 A
- 20 V, 3.25 A
- 5-20 V, 3.25 A
USB-A:
Storage
Recommended microSD Cards
- Lexar 1066x 64GB V30 A2 microSDXC
- Lexar 1066x 128GB V30 A2 microSDXC
- Lexar 1066x 256GB V30 A2 microSDXC
- Lexar 1066x 512GB V30 A2 microSDXC
- SanDisk High Endurance 64GB V30 microSDXC
- SanDisk High Endurance 128GB V30 microSDXC
- SanDisk High Endurance 256GB V30 microSDXC
- Kingston Canvas Go! Plus 64GB V30 A2 microSDXC
- Kingston Canvas Go! Plus 128GB V30 A2 microSDXC
- Kingston Canvas Go! Plus 256GB V30 A2 microSDXC
- Kingston Canvas Go! Plus 512GB V30 A2 microSDXC
- Samsung EVO Plus 512GB V30 A2 microSDXC
- Samsung PRO Plus 256GB V30 A2 microSDXC
- Samsung PRO Plus 512GB V30 A2 microSDXC
